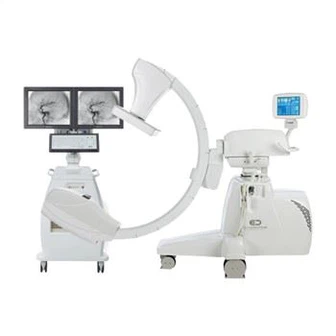

Motorized 4K BARCO Mobile Angiography Machine

Description Of Motorized 4K BARCO Mobile Angiography Machine:

• Variable SID and motorized movements

• New EPB power systems

• WAD (Water Aided Dissipation): cooling system of the X-Ray tube.

• Additional integrated filtrations to really reduce the dose without worsening the image quality

Specifications Of Motorized 4K BARCO Mobile Angiography Machine:

High-voltage generator

• Maximum voltage: 20kW

• Inverter frequency: 40kHz, high frequency, microprocessor control

• Exposure voltage range: 40-125KV

• Fluoroscopy voltage range: 40-120KV

X-ray tube

• Dual focus, big focus 0.6mm, small focus 0.3mm

• Anode speed: 1000r/min

• Anode heat capacity: 300KHU

Collimator

• Control method: All-electric control

• Blade window size: 0-75 mm×75 mm continuous adjustable

• Windows opening size automatic tracking with the SID (intelligent tracking)

Dynamic flat panel detector

• Detector type: A-Si dynamic flat panel detector

• Nominal area: 30cm×30cm

• A/D range: 16 bit


• Pixel pitch:194 µm

C-arm gantry

• Control method: All-electric control, isocentric

• WIG-WAG: 22°

• C-arm rotation: ±200°

• LAO/RAO: 200°/200°, error ±3°

• C-arm sliding: 138°

• CRA/CAU: 90°/45°

Image acquisition & processing system

• Real-time fluoroscopy function

• Have subtraction angiography image peak value holding function

• Radiography acquisition function, the highest rate is 25 fps.

• Has the option to show the image ratio and window adjustment

• With manual frame-by-frame playback, loop playback, playback rate for collecting rate of 10% ～200% is adjustable

• With functions of real-time digital subtraction angiography

Motorized 4K BARCO Mobile Angiography Machine

Motorized 4K BARCO Mobile Angiography Machine

Clinical Image
