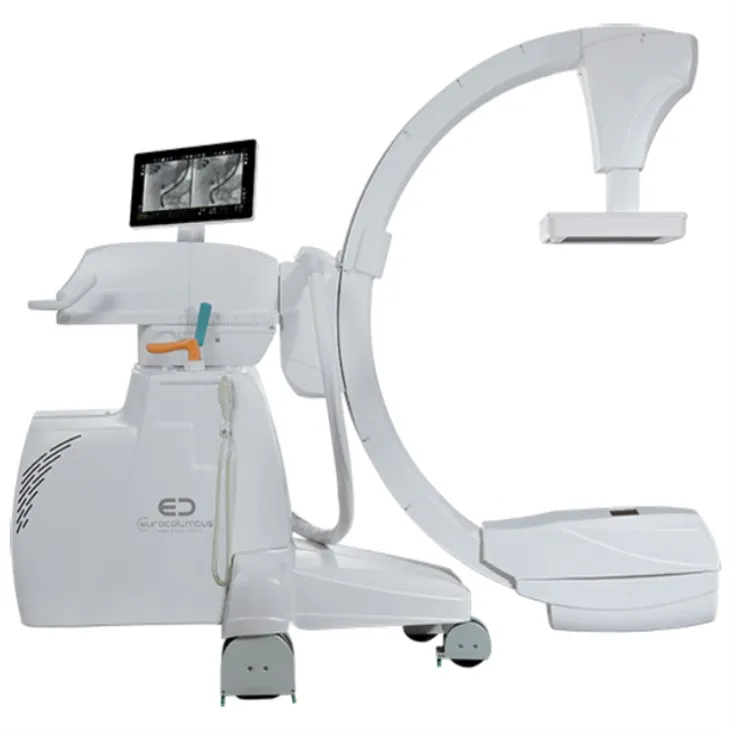

Motorized C Arm X Ray Machine

Motorized c arm x ray machine has the following features:

• It is designed for intervention surgeries and treatment.

• Abundant image processing functions, such as case management( patient records management image processing history),  peak value holding function, real-time digital movie, etc.

• The image unit is equipped with high power pc with proprietary software and enought hard disk for image storage.

• Standard DICOM 3.0.

• Rectangle and slit collimator to reduce soft and unnecessary x-rays.

• The c arm gantry has overscan functions and it is totally motorized, which is precise than manual control.


Motorized c arm x ray machine parameters:

High-frquency and high-voltage generator

• Power: 20kW

• Voltage: 40-125kV

• Pulse fluoroscopy function

• AERC regulation time delay: 1frame


X-ray tube

• Tube type: Dual focus, rotating anode,water cooling

• Dual focus, big focus 0.6mm, small focus 0.3mm

• Thermal safety switch tubehead temperature: 75℃


Dynamic flat panel detector

• Detector type: A-Si dynamic flat panel detector

• Nominal area: 30cm×30cm

• Dyanmic range: 16 bit

C-arm gantry

• Control method: All-electric control, isocentric

• C-arm lift: 500mm

• C-arm depth: 750mm

Image data management

• Intelligent image processing software: SEE


• Case management (patient records management, image processing history)

Product video:
