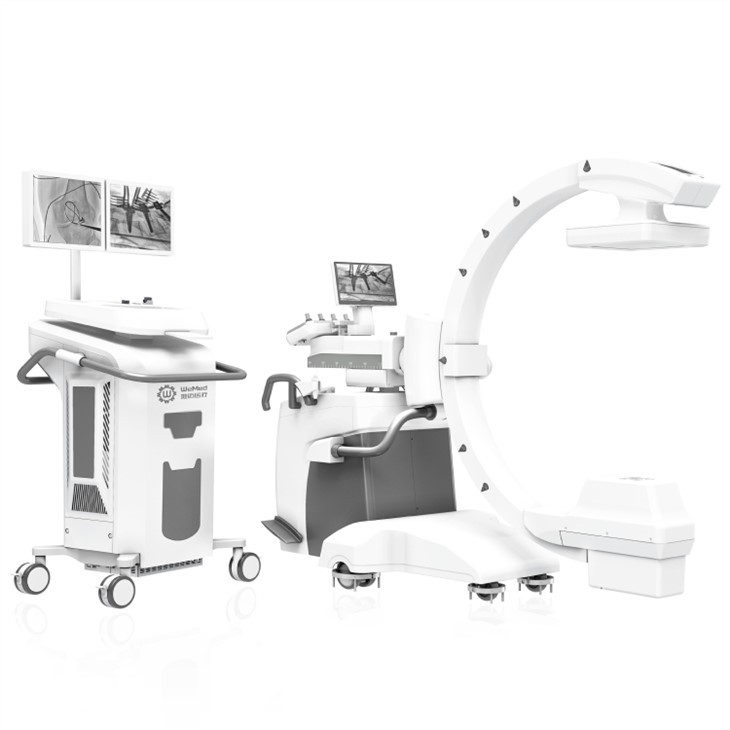

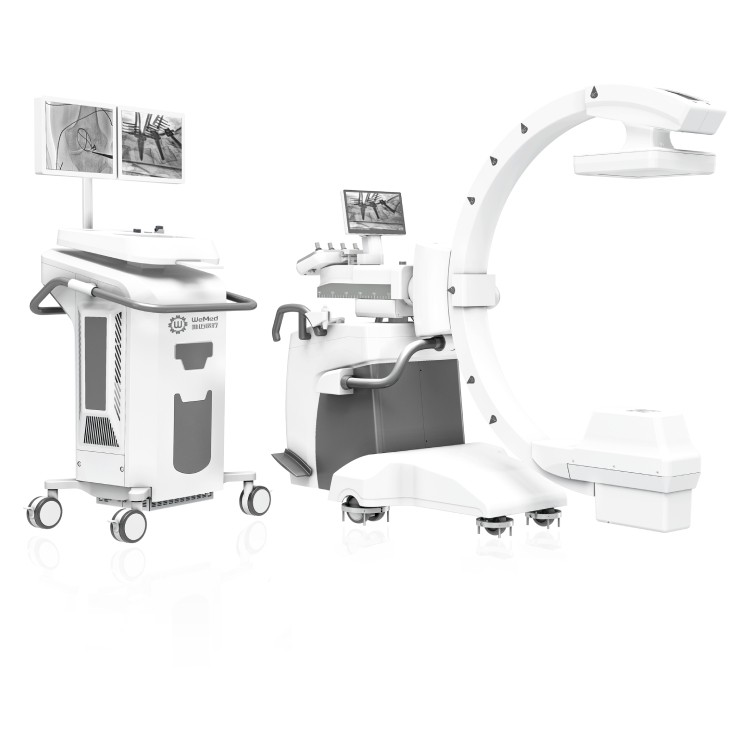

Motorized FPD Surgical C Arm--Elfinbot 100

Description Of Motorized Flat Panel Detector Surgical C Arm Machine:

• Advantages of "Compound eye" array computational imaging technology

• Multi-disciplinary application

• The ultimate HD image effect

Video:

Specification:

X-ray Generator

• Output power:5kW

• Rotating anode, dual focus, small 0.3mm, large 0.6mm

Collimator

• X-ray filed size: 0～35cm×35cm@100cm SID continuous adjustable.

• Advanced technology: Liquid metal bearing technology

Dynamic flat panel detector

• Type: Amorphous silicon CsI

• Nominal area:21cm*21cm

• Pixel pitch: 205μm

• Pixel greyscale: 65536 gradations

• Matrix: 1024×1024

C-arm Gantry

• Lateral movement:25cm

• Vertical lifting movement:45cm

• CRA/CAU: 90°/45°

• LAO/RAO: -225°/225°, error ±1°

Image Acquisition

• 1*PC, CPU2.8GHz, 8GB memory, 1T hard disk，120GSSD, 2 *USB2.0 interface

• 2*19' touch-screen medical monitors on trolley

• 1* 13.3' touch-screen monitor on C-arm gantry

• Monitor brightness: 250cd/m2

• Monitor contrast: 1000:1

Fluoroscopy

• 3 FLU modes: normal FLU, low-dose FLU, high-dose FLU.

• Supporting continuous fluoroscopy and pulse fluoroscopy

• Pulse fluoroscopy supports 1、2、4、8、16、30pps

Radiography

• CINE mode supports 6 different frame: 1,2, 4, 8, 16, 30fps.

• Spot film & CINE

• Loading time in CINE mode: 8, 16, 40, 80ms
