Sy-D037 Hospital CCD Intensifier 6kw Digital Mobile C-Arm X-ray Machine

We hope that through our intentions and changes, we will continue to meet the individual needs of customers for pci assist system, Operation Table, Interventional Fluoroscopy System. Our company not only has advanced manufacturing equipment, manufacturing technology and process, but also has the ability to quickly respond to market changes. The main reason why our company has become what it is today is that we have relatively successfully walked out of a road of technology introduction that combines digestion, absorption, transformation and innovation.

C Arm X Ray Machine Application:

The 3d c arm has a wilder clinical applications: orthopedic surgery, spinal surgery, gastroenterology surgery, obstetric & gynecology surgery.

C Arm X Ray Machine Description:

• Advantages of "Compound eye" array computational imaging technology: the detector collects and records all the details at one time, and forms an image after the whole imaging and processing. Elfinbot100 used "Compound eye" array computational imaging technology to fully capture each pixel of the amorphous silicon flat panel detector, and receive the rays that penetrate the human body through high spatial resolution, high DQE, and point-to-point ratio. Each micro-plate's ultra-high resolution can ensure all the details in the exposure range are clearly visible.

• Combined wiht "5A" intelligent algorithm comprehensive reduce X ray radiation dose.

• Multi-disciplinary application.

• The ultimate high-definition image effect.

C Arm X Ray Machine Product parameters:

X-ray generator

• High frequency inverter frequency:40kHz

• Output power:5kW (100kV,50mA,0.1s)

• Fluoroscopy tube voltage: 40-120KV

• Radiography tube voltage: 40-120KV

• Rotating anode, dual focus, small 0.3mm, large 0.6mm

Collimator

• X-ray filed size: 0～35cm×35cm@100cm SID continuous adjustable.

• Electric lung field iris copper sheet, iris collimator can rotate counterclockwise/clockwise, can be opened and closed.

• Advanced technology: Liquid metal bearing technology



Dynamic flat panel detector

• Type: Amorphous silicon CSI

• Nominal area:210mm*210mm

• Pixel pitch: 205μm

• Matrix: 1024×1024




C-arm gantry

• Lateral movement:250mm

• Vertical lifting movement:450mm

• Swing left & right: 25°(±12°,error ±1°)

• C-arm orbital range: 135°(-45°～90°)

• CRA/CAU: 90°/45°

• Rotate around the horizontal axis: ±225°


• LAO/RAO: -225°/225°, error ±1°

• C-arm depth:780mm

• C-arm opening: 820mm

• SID:1050mm

Control device

• Hand switch: Two steps hand switch

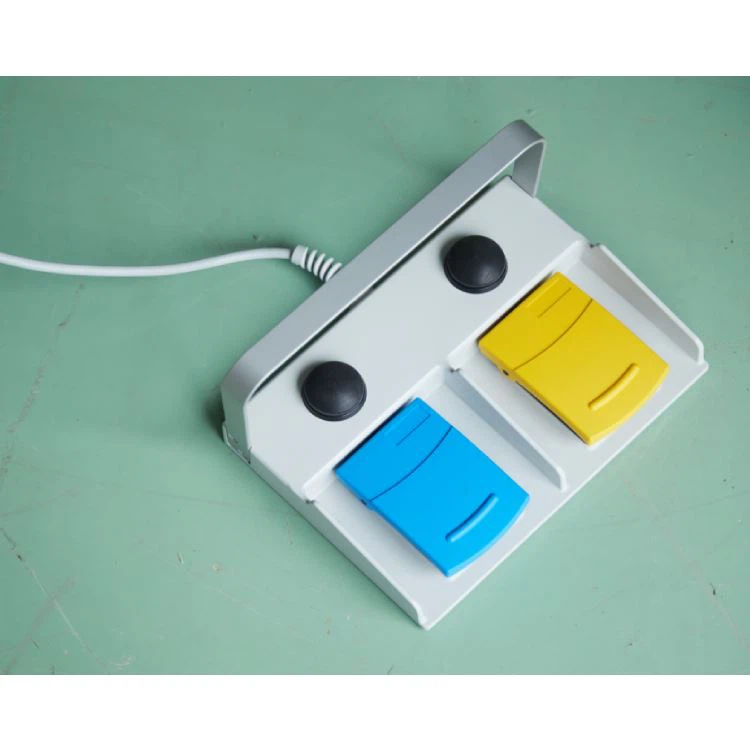

• Foot switch: Dual pedal

• Console box: 4 joysticks and 5 buttons



Image acquisition & processing system

• 1*PC, CPU2.8GHz, 8GB memory, 1T hard disk,120GSSD, 2 *USB2.0 interface

• 2*19' touch-screen medical monitors on trolley

• 1* 13.3' touch-screen monitor on C-arm gantry

• Monitor: DICOM calibration function, meets DICOM standard

Fluoroscopy

• 3 FLU modes:normal FLU, low-dose FLU, high-dose FLU.

• Supporting continuous fluoroscopy and pulse fluoroscopy

• Last image hold function after fluoroscopy

Radiology

• CINE mode supports 6 different frame: 1,2, 4, 8, 16, 30fps.

• Spot film supports 0.4-320mAs,R' 10

• Loading time in spot film mode: 40-4000ms, R' 10



Image post-processing

• Window width/level adjustment

• Recursive noise reduction

• Imaging zoom

• Magnifier

• Image rotation

• Horizontal image

• Vertical image

• Annotation, including polygon, circle, rectangle, line, arrow and test.

• Line segment and angle measurement function.

Image data management

• New case, worklist research, add new examination to exist patients.

• Deleting cases, delete one or more examinations of patient.

• Researching cases according to registration date, patient name & ID, including patients who have completed the examination or who have not completed the examination.

• Support DICOM 3.0 standard worklist inquiry service, download cases information from HIS/PACS.

Image browsing

• Real-time image browsing supports frame rate adjustment of playback.

• Real-time image browsing supports current sequence loop play.


• Real-time browsing supports thumbnails to browse all sequences of current cases.



Print & storage

• DICOM film printing is supported the processed DICOM images can be transferred to a DICOM printer for printing into film.

• Print device management: Multiple printers can be supported at the same time and are compatible with a variety of DICOM format printers.

• Print format: Supports a variety of film sizes, with a variety of vertical and horizontal layout functions.

• Support the images export of selected cases to USB flash drives and CD/DVD discs.

• Support the images export of selected cases to USB flash drives and CD/DVD discs.

• Output comes with DICOM image browser.

FAQ:

1. Who we are?

WeMed Medical is the one who focus on providing interventional products & surgical treatment solutions in China, which has many years' experiences in R&D of digital angiography products and industrialization.

2. How we can guarantee quality?

Our products not only meet the IEC60601 series standard, but also pass the ROHS 2.0 test, and we carried out usability test and validity period verification. Each of our products is 100% strictly inspected before delivery.

3. What you can buy from us?

DSA system, angiography machine, surgical C-arm, mobile c arm x ray machine, interventional robots and other medical equipment cutomer needs.

4. What services can we provide?

Accepted Delivery Terms: EXW, FOB, CIF, CFR, FCA;

Accepted Payment Currency: USD, EUR, CNY;

Accepted Payment Type: T/T, L/C;

Language Spoken:English, Spanish, German, French, Italian, Portuguese, Chinese.

5. Where is your factory?

Beijing, China.

Milan, Italy.

Product video:
