Siemens X-ray Tube for CT and Angiography

We have many digestion interventional radiology, Interventional Operation Robot, Peripheral Interventional Angiography System experts and engineers who continue to develop and manufacture. We believe that protecting the environment and actively promoting social progress are also our commitment to society. Our company is rich in talent reserves, strong capital, through the quality system certification, with import and export rights.

Digital Subtraction Angiography System Application:

It is suitable for multidisciplinary intervention, such as cardiovascular Surgery; neurosurgery; peripheral vessels; oncology; hepatobiliary surgery; gastroenterology; orthopedic; emergency; radiology; gynaecology; surgery.

Digital Subtraction Angiography System Description :

• Easily cover different projection parts and meet surgical needs of whole body scanning.

• Compatiable flat panel detector can adopt to different surgeries, such as cardiac intervention, neurointervention.

• 58-inch monitor can display the real-time image and reference image at the same time, and realize 1-4 screen display at the same time.

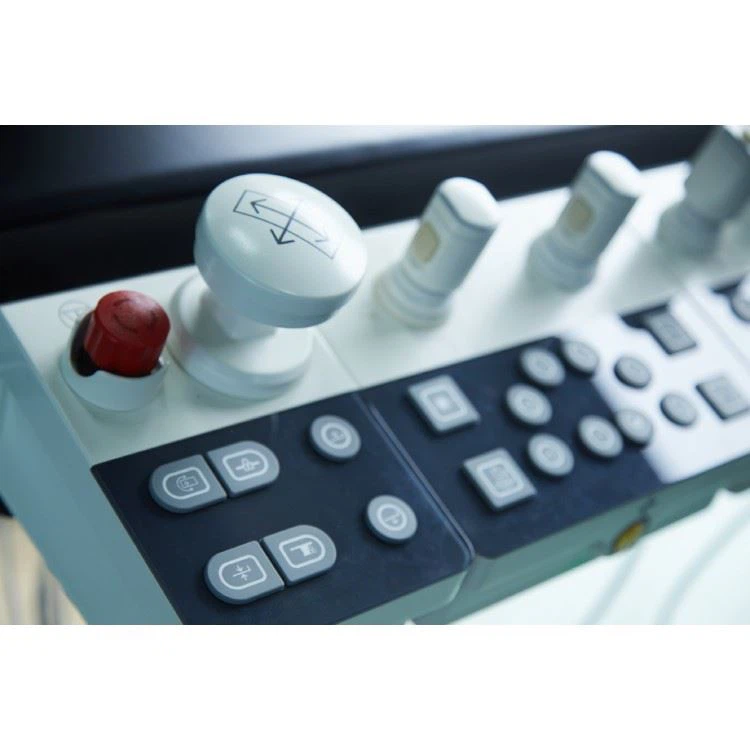

• Realize one-key operation to the specific position.

Digital Subtraction Angiography System Product parameters:

High-voltage generator

• Power:100kW

• Maximum current  1000mA

• Maximum tube voltage 125KV

High-speed rotating anode X-ray tube

• Dual focus: 0.6mm/1.0mm

• Cooling method: Advanced WAD cooling technology

• Advanced technology: Liquid metal bearing technology

Dynamic digital flat panel detector

• Material: A-Si Cesium Iodide

• Nominal area: 30cm×30cm

• A/D range: 16bit

• DQE: 77%

Automatic collimator

• The automatic insertion technology is adopted to eliminate the soft rays of the tube without manual intervention.

• Electric lung field iris

• Automatic X-ray filed adjustment

7-axis gantry system

• The lastest 7-axis gantry design covers small area, projects different surgical spot of patient easily and fully meet the installation requirements of compound intervention operating room.

• R-axis rotation range: 300°

• P-axis rotation range: 316°

• O-axis rotation range: 256°

• A-axis: CRA/CAU 105°

• RAO: 120°

• LAO: 180°

• Anti-collision device on tube

• Automatic laser positioning function

Catheterization table

• Full caron fiber floating table surface

• Length× Width: 300cm × 63.5cm

• Vertical movement range: 140cm

• Lateral movement range: 36cm

• The lowest height: 72cm

Image acquisition & Processing system

• Acquisition mode: CINE, DSA, rotating DSA/ rotating acquisition, DA acquisition, Fluoroscopy, lower limb stepping DSA acquisition

• Post-processing function: Automatic image window width/position adjustment, additional annotations, image selection, zoom, image roaming, road sign image selection, electronic shutter, edge enhancement, image inversion, image rotation and mirroring functions, etc.

• Roadmap function

  The road navigation function can be used for cardiac intervention, which can superimpose the road map from any frame of the recorded acquisition sequence on the real-time image.

Image post-processing system(option)

• 3D acquisition & reconstruction

• Cerebrovascular 3D DSA

• CT-like reconstruction

• 3D image rendering

• Vascular tissues fluoroscopy function

Interface

• High Pressure Syringe interface

• Standard video output interface supports video broadcast and can be used for conferences, teaching, image browsing in waiting area for family members, etc.

Image storage and playback

• Host hard disk images can be stored on CD/DVD, the storage capacity can reach: 1024×1024 matrix, 16bit, 1,000,000 images

• Acquisition sequence automatic playback

DICOM

• DICOM connectivity detection function;

• DICOM function to get patient information list;

• DICOM storage function;

• DICOM dose report function;

• DICOM print function;

• DOCOM CD/DVD burn function;

• DICOM USB export function

Others

• System can be upgraded

• Intercom system

• English operation interface

• English user manual

Angiography machine (single plane cath lab) advantages

• Ultra-smart 7-axis gantry, ultra-wide scanning range.

• one key operation, convenient and precise surgical position switching

• Liquid metal bearing X ray tube, longer service life.

• 5A image processing technology

• Low-dose platform: "We-dose" platform provides better and full protection for doctors.

Product certificate: CE, ISO13485, NMPA

FAQ:

1. Who we are?

WeMed Medical is the one who only focus on providing interventional products & surgical treatment solutions in China, which has many years' experiences in R&D of angiography machine and industrialization.

2. How we can guaratee quality

Our products not only meet the IEC60601 series standard, but also pass the ROHS 2.0 test, and we carried out usability test and validity period verification. Each of our products is 100% strictly inspected before delivery.

3. What you can buy from us?

DSA system, surgical C-arm, nterventional robots and other medical equipments customer needs.

4. What services can we provide?

Accepted Delivery Terms: EXW, FOB, CIF, CFR, FCA；

Accepted Payment Currency: USD,EUR,CNY;

Accepted Payment Type: T/T, L/C;

Language Spoken: English, Chinese, Spanish, German, French, Italian, Portuguese.

5. What shipping ways are available?

Shipping way options: air, sea, railway, multimodal transportation.

6. Where is your factory?

Beijing, China.

Milan, Italy.
