Single Plane Neuro Cath Lab

Single plane neuro cath lab description :

The latest single plane neuro cath lab  has a innovative 7 axes linkage gantry desin, which can project any parts of paitent easily.

Equipped with newest generator, x ray tube and dynamic flat panel detector, which greatly ensure the system stable operation and high-quality interventional images.

The catheterization table can rotate ±90 degrees, and the table surface is full carbon fiber material. And it can low to 72 cm, which is the lowest height in the industry.

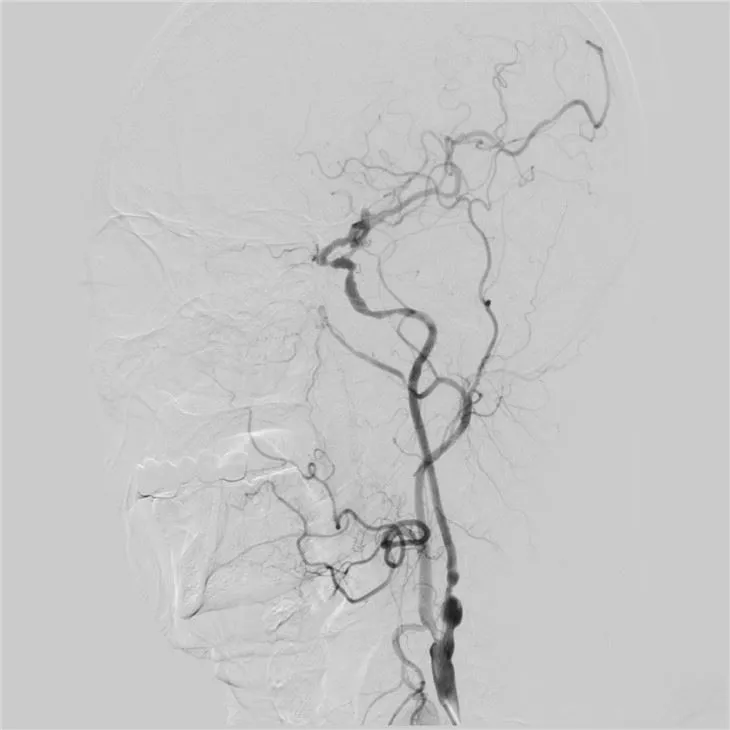

Image processing technoliges help doctors to know more and clear about the lesions.

DICOM 3.0 standard.

Single plane neuro cath lab product parameters:

High-voltage generator

• Power:100kW

• Maximum current  1000mA

• Maximum tube voltage 125KV

High-speed rotating anode X-ray tube

• Dual focus: 0.6mm/1.0mm

• Cooling method: Advanced WAD cooling technology

• Advanced technology: Liquid metal bearing technology

Dynamic digital flat panel detector

• Material: A-Si Cesium Iodide

• Nominal area: 30cm×30cm




Automatic collimator

• The automatic insertion technology is adopted to eliminate the soft rays of the tube without manual intervention.

• Electric lung field iris

• Automatic X-ray filed adjustment

7-axis gantry system.

• R-axis rotation range: 300°

• P-axis rotation range: 316°

• O-axis rotation range: 256°

• A-axis: CRA/CAU 105°

Catheterization table

• Full caron fiber floating table surface

• Length× Width: 300cm × 63.5cm

• Vertical movement range: 140cm

• Lateral movement range: 36cm

• The lowest height: 72cm

Image post-processing system(option)

• 3D acquisition & reconstruction

• Cerebrovascular 3D DSA

• CT-like reconstruction

• 3D image rendering

• Vascular tissues fluoroscopy function

Interface

• High Pressure Syringe interface

• Standard video output interface supports video broadcast and can be used for conferences, teaching, image browsing in waiting area for family members, etc.

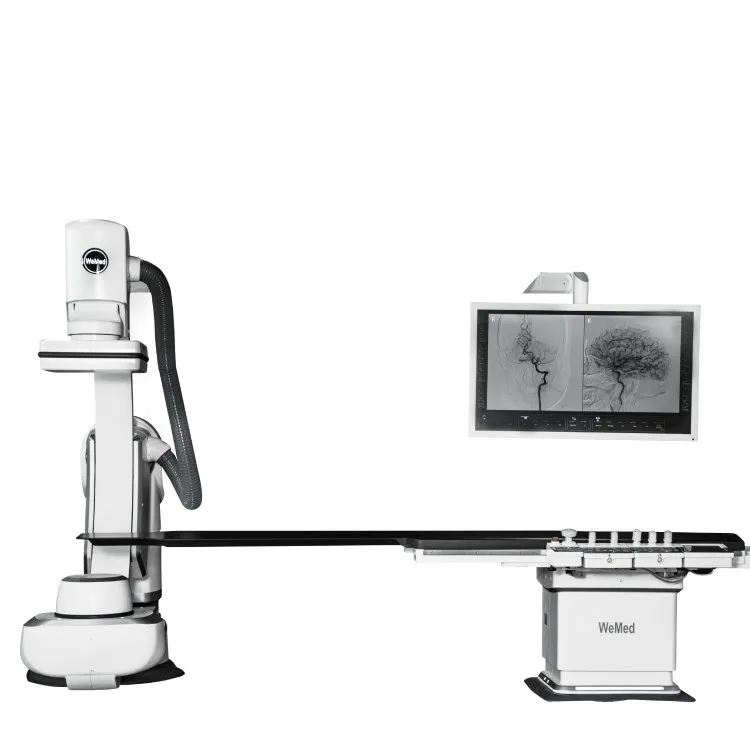

Cardiac cath lab

Product certificate: CE, ISO13485, NMPA

FAQ:

1. Who we are?

WeMed Medical is the one who only focus on providing interventional products & surgical treatment solutions in China, which has many years' experiences in R&D of angiography machine and industrialization.

2. How we can guaratee quality

Our products not only meet the IEC60601 series standard, but also pass the ROHS 2.0 test, and we carried out usability test and validity period verification. Each of our products is 100% strictly inspected before delivery.

3. What you can buy from us?

DSA system, surgical C-arm, nterventional robots and other medical equipments customer needs.
