Made-in-China Single Plane Digital Subtraction Angiography Machine
The Pilot-c is suitalbe for all interventional departments, such ascardiovascular surgery, neurosurgery and etc.
Product Introduction

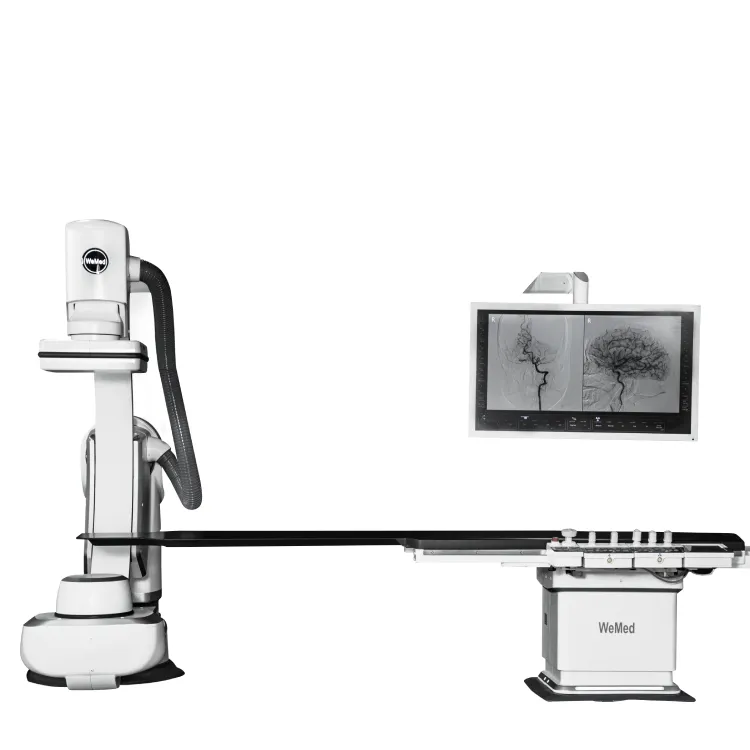

Made-in-China single plane digital subtraction angiography machine features
Our latest 7-axis digital subtraction angiography system adopted the advanced generator from CPI Canada. The maximum power is 100kw and the voltage is from 40-125KV.
The X-ray tube is from Cannon, which is high-speed rotating anode X-ray tube.With it’s liquid metal bearing technology, the X-ray tube has a lower noise and longer service life. It has two focal spot, the small focus is 0.6mm, and the larger one is 1.0mm.
The 30*30cm flat panel detector used amorphous silicon material. The DQE can reach 77%, which can provide high definition images.
The 58-inch monitor can show live and reference images clearly, and realize 1-4 screen display .
Our unique 7-axis gantry system has a larger scanning area.
The catheterization table can rotation 360 degree and has a floating table board. The lowest height is 72cm, which can transfer patient easily.
The whole system also has protection system, such as physical limit protection, mechanical trigger protection and software limit protection.

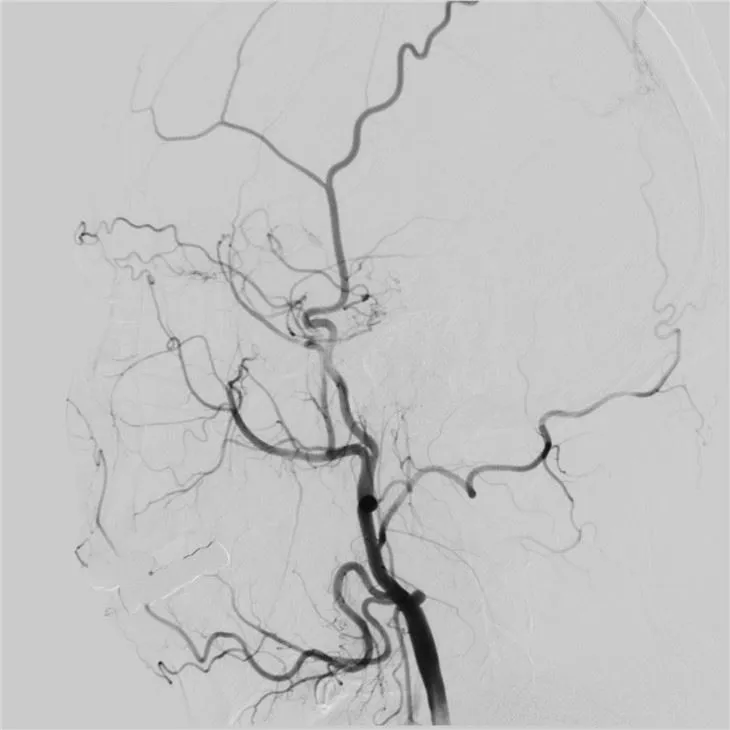

Pilot-c has abundant post-processing functions, such as roadmap, QCA, CT-like and so on.
Our Pilot-c system can apply to different intervention, such as cardiac intervention, neuro intervention and peripheral intervention.
Made-in-China single plane digital subtraction angiography machine
Product video:
