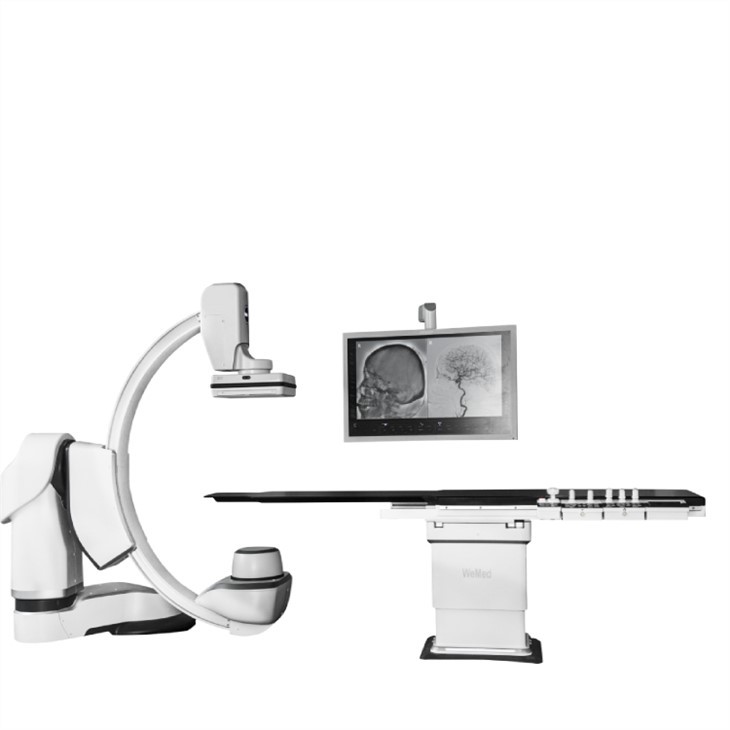

Made-in-China 7-axis Digital Angiogrpahy Machine

It is suitable for multidisciplinary intervention, such as cardiovascular Surgery; neurosurgery; peripheral vessels; oncology; hepatobiliary surgery; gastroenterology; orthopedic; emergency; radiology; gynaecology; surgery.

Send Inquiry

Product Introduction

Made-in-China 7-axis digital angiogrpahy machine description :

It has a 7 axes gantry design, which cooperate with the C arm to provice a larger scanning area.
The main components is from the well-know brand, which ensure the system stable working.
The patient support device can rotate ± 180 degrees and a full carbon fiber table borads.
Multi image processing and post-processing functions.

Made-in-China 7-axis digital angiogrpahy machine product parameters:

High-voltage generator

Power:100kW
Maximum current 1000mA

High-speed rotating anode X-ray tube

Dual focus: 0.6mm/1.0mm
Cooling method: Advanced WAD cooling technology

Dynamic digital flat panel detector

Material: A-Si Cesium Iodide
Nominal area: 30cm×30cm

7-axis gantry system

R-axis rotation range: 300°
P-axis rotation range: 316°
Anti-collision device on tube
Automatic laser positioning function

Catheterization table

Full caron fiber floating table surface
Length× Width: 300cm × 63.5cm

Image acquisition & Processing system

Acquisition mode: CINE, DSA, rotating DSA/ rotating acquisition, DA acquisition, Fluoroscopy, lower limb stepping DSA acquisition
Post-processing function: Automatic image window width/position adjustment, additional annotations, image selection, zoom, image roaming, road sign image selection, electronic shutter, edge enhancement, image inversion, image rotation and mirroring functions, etc.
Roadmap function
The road navigation function can be used for cardiac intervention, which can superimpose the road map from any frame of the recorded acquisition sequence on the real-time image.
