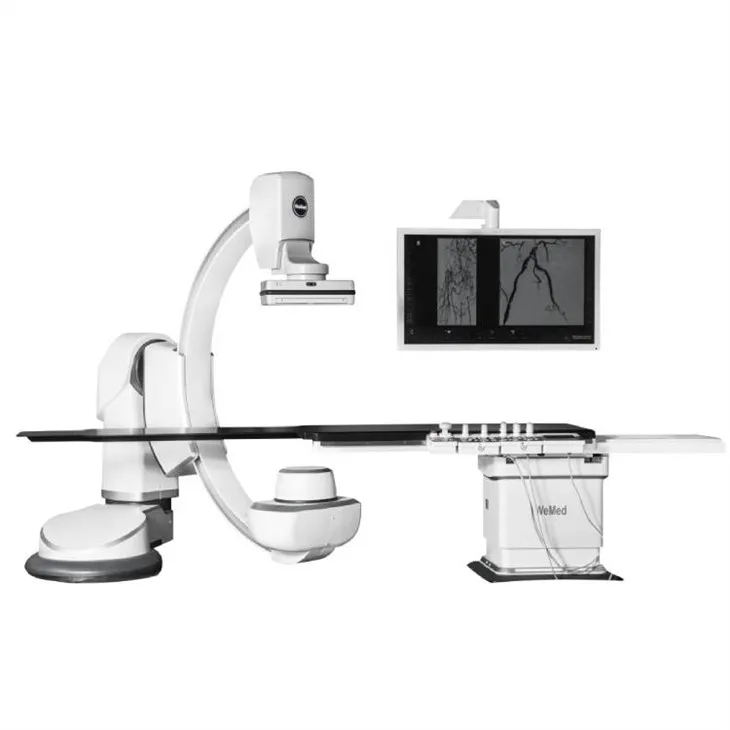

High Presure Syringe Interface Angiography System

About The High Presure Syringe Interface Angiography System:

Use Environment :

• Power requirements: three-phase AC, voltage:380V+/-10%, frequency: 50/60Hz+/-1Hz

• Ambient temperature: 10℃-35℃

• Relative humidity: 30%-75%

The Characteristics Of The High Presure Syringe Interface Angiography System:

C arm Gantry

• The handle can be operated with one hand easily to realize the sliding, rotating and combined movement of the C-arm gantry

• Easy to operate and learn

• One-key emergency stop

• C arm rotation speed (rotational acquisition) 70 degree/second

• Vertical movement speed (Along the direction of the catheterization table movement): 10cm/s

• Collimator and flat panel detector have an automatic two-way tracking function

Digital FPD

• Material: A-Si Cesium Iodide

• Nominal area: 30cm×30cm

• The collimator and flat panel detector synchronic servo to ensure the clinic imaging is always upright.

• Flat panel detector rotation: ±90°

• Digital imaging acquisition matrix: 1536×1536

• Maximum acquisition rate:30fps

Tubehead

• Dual focus: 0.6mm/1.0mm

• Heat capacity is 2.6MHU

• Small focus power:43KW

• Big focus power:80KW

• Anode target material: Molybdenum rhenium

• Target angle:11°

• Inherent filter: 1.1mmAl 75KV

High-voltage Generator

• Power:100 KW

• Variable frequency high voltage generator, inverter frequency: 160KHz-400KHz

• Maximum current: 1000mA

• Maximum output voltage: 125KV

Automatic Collimator

• Automatic switching filter: Air, 0.1mmCu, 1mmAI+0.2mmCu, 2mmAI


• Electric lung field iris

• Automatic X-ray filed adjustment

Catheterization Table

• Meet requirements of systemic examination & treatment; meet the requirements of interventional and hybrid surgery

• Catheterization table specification

• Full carbon fiber floating table surface

• Length: 300cm (Exclude the length of extension board)

• Width: 63.5cm

• Maximum load-bearing : 450kg (250Kg+100KgCPR+100Kg accessories)

• Catheterization table movement range

• Vertical movement range: 140cm

• Lateral movement range: 36cm

Image Acquisition & Processing System

• Acquisition mode: CINE, DSA, rotating DSA/ rotating acquisition, DA acquisition, Fluoroscopy, lower limb stepping DSA acquisition

• Dynamic image optimization and noise reduction


• Window width/window level adjustment, sharpness adjustment, Gamma adjustment


Image Post-processing System(option)

• 3D acquisition & reconstruction

• Cerebrovascular 3D DSA

• CT-like reconstruction

• 3D image rendering

Certification

• CE, ISO13485, NMPA

High Pressure Syringe Interface Angiography System

High Pressure Syringe Interface Angiography System
