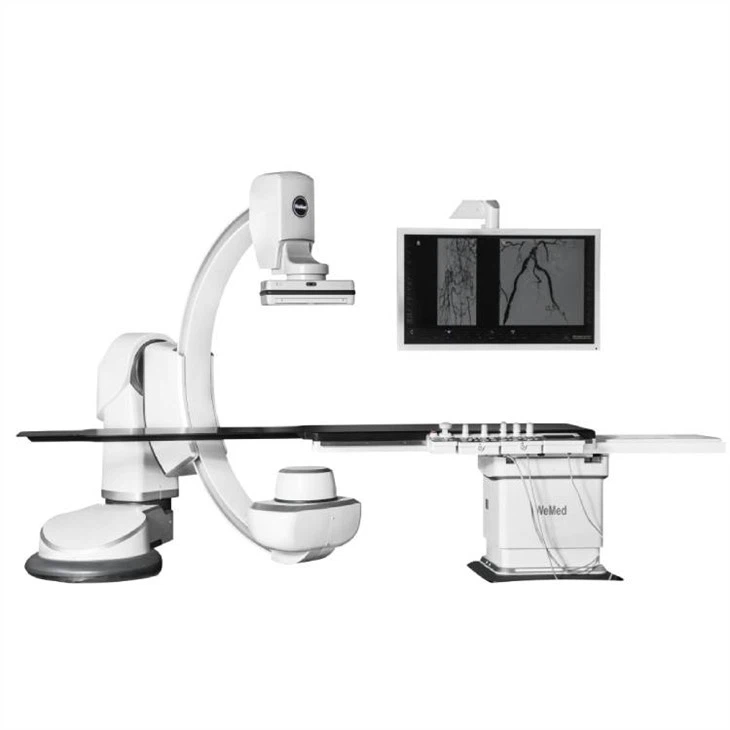

Floor Mounted Angiography C-arm Machine

Digital Subtraction Angiography System Video:

Product Parameters:

High-voltage generator

• Power:100kW
• Maximum current  1000mA
• Maximum tube voltage 125KV

Anode X-ray tube

• Dual focus
• Liquid metal bearing technology

Dynamic digital flat panel detector

• Material: A-Si Cesium Iodide
• Nominal area: 30cm×30cm
• DQE: 77%

7-axis gantry system

• CRA/CAU 105°
• RAO: 120°
• LAO: 180°

Catheterization table

• Full caron fiber floating table surface
• Length× Width: 300cm × 63.5cm
• The lowest height: 72cm

Image acquisition

• CINE: maximum acquisition speed: 30 FPS; 1.5K matrix acquisition

• Standard DSA model: maximum acquisition speed: 30 FPS; 1.5K matrix acquisition, real-time DSA

• Digital pulse has 6 kind different rate: 1,2,4,8,15,30 FPS

• Subtraction & non-subtraction switching

DICOM

• With DICOM connectivity detection function

• With DICOM function to get patient information list

• DICOM storage function

• DICOM dose report function

•
