Digital Subtraction Angiography System With HD Images

Medical Digital Subtraction Angiography machine (single plane cath lab) advantages:

• Ultra-smart 7-axis gantry, ultra-wide scanning range.

• one key operation, convenient and precise surgical position switching

• Liquid metal bearing X-ray tube, longer service life.

• Low-dose platform: "We-dose" platform provides better and full protection for doctors.

Product video:

Digital Subtraction Angiography System Product Specification:

Gantry system

• R-axis rotation range: 300°

• P-axis rotation range: 316°

• O-axis rotation range: 256°

• A-axis: CRA/CAU 105°

• RAO: 120°

• LAO: 180°

• Flexible 7-axis


Dynamic digital flat panel detector

• Material: A-Si Cesium Iodide

• Nominal area: 30cm×30cm

• A/D range: 16bit

High-voltage generator

• Power:100kW

• Maximum current  1000mA

• Maximum tube voltage 125KV

X-ray tube

• Dual focus

• Advanced WAD cooling technology cooling method

• Advanced technology: Liquid metal bearing technology

Automatic collimator

• The automatic insertion technology is adopted to eliminate the soft rays of the tube without manual intervention.

• Electric lung field iris

• Automatic X-ray filed adjustment

Catheterization table

• Full carbon fiber floating table surface

• Length× Width: 300cm × 63.5cm

• Vertical movement range: 140cm

• Lateral movement range: 36cm

• The lowest height: 72cm

Image acquisition & Processing system

• Acquisition mode

• Post-processing function

• Roadmap function

• 5A image processing technology

Image post-processing system(option)

• 3D acquisition & reconstruction

• Cerebrovascular 3D DSA

• CT-like reconstruction

• 3D image rendering

• Vascular tissues fluoroscopy function

Image storage and playback

• Host hard disk images can be stored on CD/DVD, the storage capacity can reach: 1024×1024 matrix, 16bit, 1,000,000 images

• Acquisition sequence automatic playback

Support DICOM 3.0

Angiography Machine

58' Monitor of Angiography System

Smart Table-side Control of Cath Lab

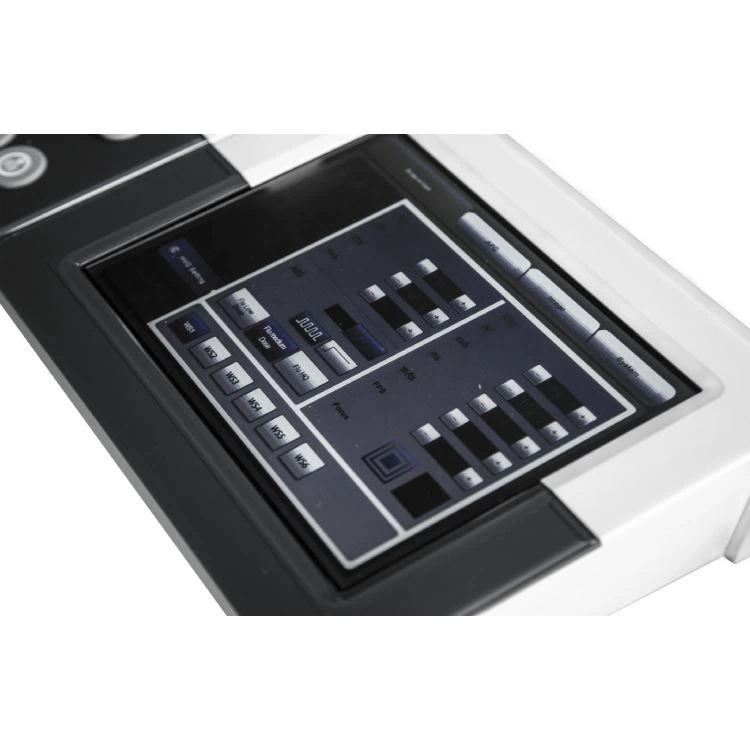

Table-side Micro-computer of Cath Lab

C arm

Catheterization Table of Cath Lab

Angiography machine (single plane cath lab) advantages

• Ultra-smart 7-axis gantry, ultra-wide scanning range.

• one key operation, convenient and precise surgical position switching

• Liquid metal bearing X-ray tube, longer service life.

• Low-dose platform: "We-dose" platform provides better and full protection for doctors.
