7-axis Angiography Machine

Digital 7-axis Angiography Machine Description :

• Ultra-smart 7-axis gantry, ultra-wide scanning range.

• one key operation, convenient and precise surgical position switching

• Liquid metal bearing X ray tube, longer service life.

• 5A image processing technology

• Low-dose platform: "We-dose" platform provides better and full protection for doctors

Product video:

Product Pictures:

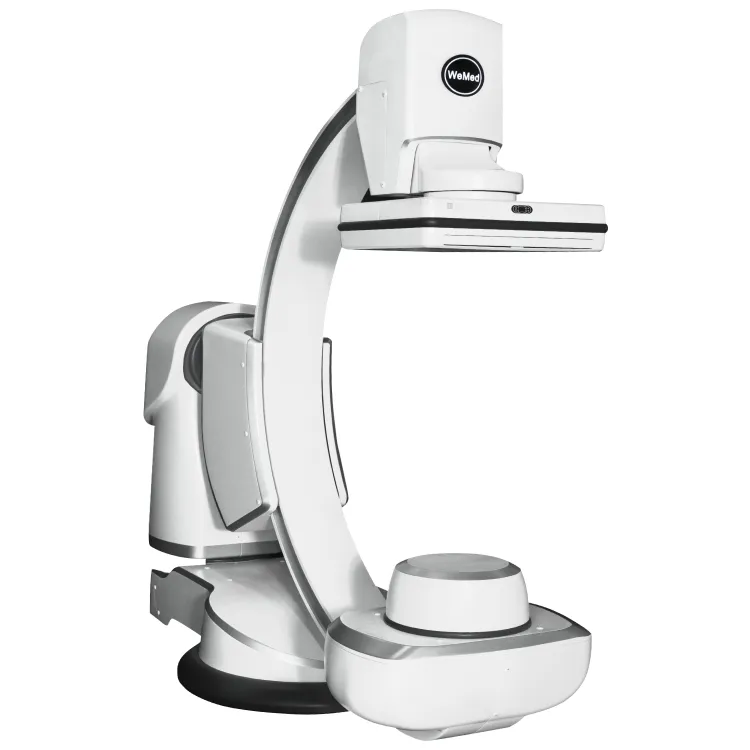

7-axis Angiography Machine

7-axis Angiography Machine Table

Digital 7-axis Angiography Machine Index:

High-voltage Generator

• Power:100kW

• Maximum current  1000mA

• Maximum tube voltage 125KV

• Variable frequency high voltage generator, inverter frequency: 160KHz~400KHz

High-speed X ray Tube

• Dual focus: small 0.6mm, large 1.0mm

• Small focus power: 43KW

• Big focus power: 80KW

• Tube cooling method: Air, Water, Oil

Digital FPD

• Material: A-Si Cesium Iodide

• Nominal area: 30cm×30cm

• Maximum load-bearing : 450kg (250Kg+100KgCPR+100Kg accessories)

• Visual filed:3

The Gantry System

• R-axis rotation range: 300°

• P-axis rotation range: 316°

• O-axis rotation range: 256°

• A-axis: CRA/CAU 105°

Patient Table

• Length× Width: 300cm × 63.5cm

• The lowest height: 72cm

Image Acquisition

• Acquisition mode: CINE, DSA, rotating DSA/ rotating acquisition, DA acquisition, Fluoroscopy, lower limb stepping DSA acquisition

• Digital pulse has 6 kind different rate: 1,2,4,8,15,30 FPS

DICOM

• DICOM dose report function;

• DICOM print function;

• DOCOM CD/DVD burn function;

• DICOM USB export function
