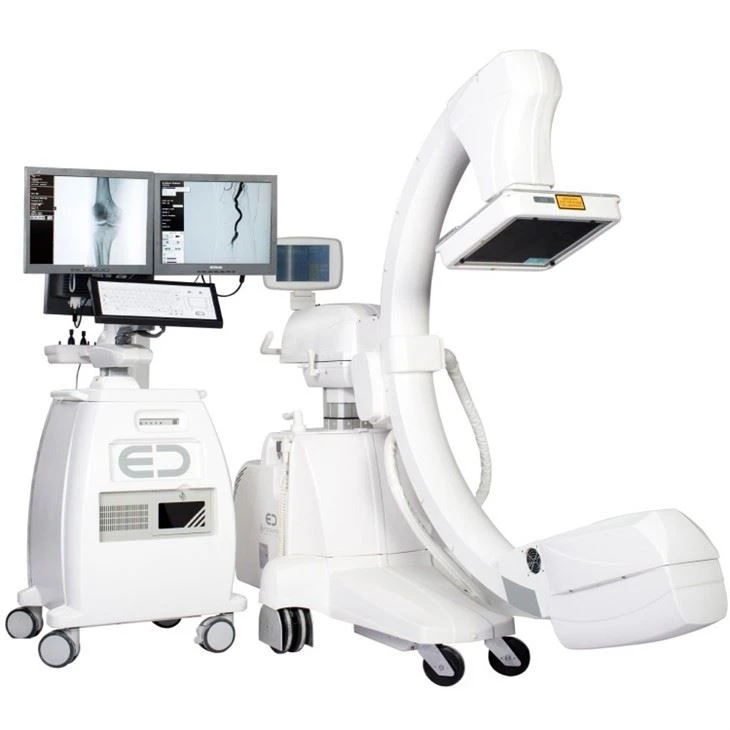

Italy Mobile C Arm X Ray Machine

Italy mobile c arm x ray machine description:

• The liquid metal bearting X-ray tube has tow focus, the focus size is 0.3mm and 0.6mm.


• The flat panel detector is amourphous silicon material, the nominal area is 30cm*30cm. It can provide a larger image size for doctors.

• The c arm movement is motorized and isocentric, which has a 105cm-118cm variable SID.

• The use of EtherCAT technology brings significant benefits in terms of speed and reliability to all the Applications developed and therefore installed on the systems.

• In order to guarantee full compliance with clinical requirements and not to create artifacts, no digital compression is performed on the images.

Italy mobile c arm x ray machine parameters:

High frequency generator

• Maximum power: 20kW

• Exposure voltage range: 40-125KV

• Radiography acquisition voltage range: 40kV-120kV

• Radiography acquisition current range: 40mA-200mA

X-ray tube

• Tube type: Dual focus, rotating anode, water coolingmethod

• Dual focus, big focus 0.6mm, small focus 0.3mm

Dynamic flat panel detector

• Detector type: A-Si dynamic flat panel detector

• Nominal area: 30cm×30cm

C-arm gantry

• Control method: All-electric control, isocentric

• C-arm opening: 960mm

• SID: 1050-1180mm

Image acquisition & processing system

• Real-time fluoroscopy function.

• Have subtraction angiography image peak value holding function.

• Has the option to show the image ratio and window adjustment.

• With functions of real-time digital subtraction angiography.



Italy mobile c arm x ray machine

Product video:
