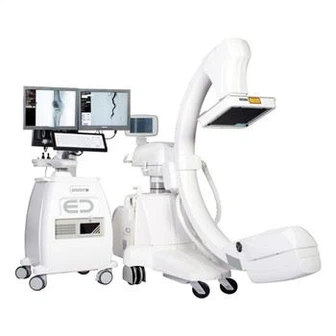

Alien E Mobile Cath Lab

Alien E mobile X-ray C-arm interventional treatment is imported Italian mobile X-ray medical equipment, the product design is used for diagnosis, surgical and interventional treatment process to provide insight and digital image. Its clinical applications include orthopedics, neurology, vascular surgery, cardiology, critical care and emergency operation.

Send Inquiry

Product Introduction

Alien E cath lab brief description:

Cover a small area
30*30cm dynamic flat panel detector
Bi-focal, rotating anode tube with liquid cooling
Isocentric movement
3 professional monitor
Abundant processing and post-processing functions

Alien E cath lab product parameters:

High-voltage generator

Maximum voltage: 20kW
Exposure voltage range: 40-125KV
Exposure current range: 40mA-200mA
Pulse fluoroscopy function

X-ray tube

Tube type: Dual focus, rotating anode,water cooling
Dual focus, big focus 0.6mm, small focus 0.3mm

Dynamic flat panel detector

Detector type: A-Si dynamic flat panel detector
Nominal area: 30cm×30cm

C-arm gantry

Control method: All-electric control, isocentric
C-arm lift: 500mm
C-arm depth: 750mm
C-arm opening: 960mm
SID: 1050-1180mm

Image data management

Intelligent image processing software: SEE
Case management (patient records management, image processing history)

Image acquisition & processing system

window wide and window position adjustment, Gamma curve correction, black and white
edge enhancement smooth noise reduction
display digital image library storage condition
DICOM 3.0 connection, muti-channel image output
text annotation, region labeling

Dose control
