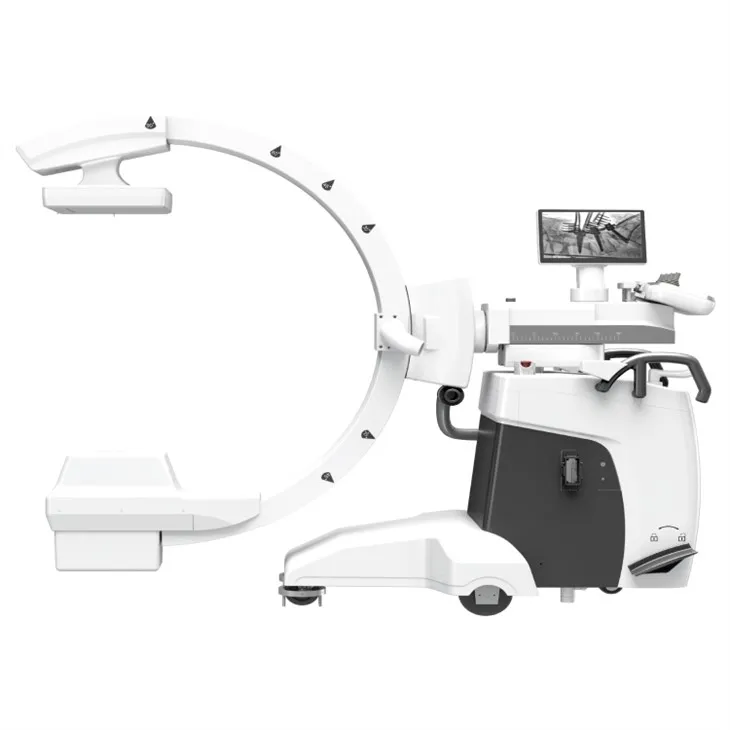

Stable Anode Heat Capacity Mobile C-arm X Ray Machine

Features Of Mobile C arm X Ray Machine:

• High penetration power
• Touch screen operation and display
• High brightness & high contrast

Video:

Product Parameters:

X-ray generator

• Output power:5kW (100kV、50mA、0.1s)

• Tube current: 0.2-100mA

• Small focus 0.3mm, large focus0.6mm

• Anode heat dissipation: 423HU/s

Collimator

• Additional filters: Air; 1mmAl+0.1mmCu; 1mmAl+0.2mmCu; 2mmAl

• Advanced technology: Liquid metal bearing technology

Dynamic FPD

• Amorphous silicon Csi

• FPD size: 21cmx21cm

• AD range: 16bits

• Maximum acquisition rate: 30FPS

C arm Movement

• Lateral movement:250mm

• Vertical lifting movement:450mm

• CRA/CAU: 90°/45°

• LAO/RAO: -225°/225°

Control device

• Hand switch: Two steps hand switch

• Footswitch: Dual pedal

• Console box: 4 joysticks and 5 buttons

Image Acquisition & Processing

• Workstation: 1*PC, CPU2.8GHz, 8GB memory, 1T hard disk，120GSSD, 2 *USB2.0 interface

• two 19’ touch-screen medical monitors on trolley; 1* 13.3’ touch-screen monitor on C-arm gantry

• Monitor resolution of C-arm gantry: 1920*1080

Post-processing

• Window width/level adjustment

• Recursive noise reduction

• Imaging zoom

• Magnifier

• Image rotation

• Horizontal image

• Vertical image

• Annotation, including polygon, circle, rectangle, line, arrow and test.

• Line segment and angle measurement function.
