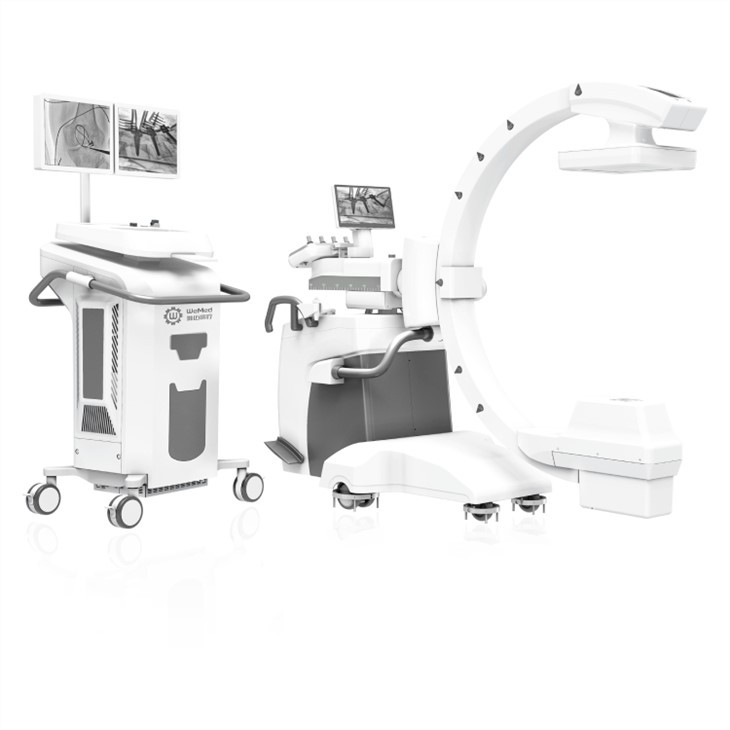

Real-time Image Browsing Orthopedic C Arm X Ray

Portable C arm X ray System video:

Product Details:

Multi-disciplinary application, the ultimate HD image effect with low-dose system, comprehensive protection

C-arm Gantry

• Lateral movement: 250mm

• Vertical lifting movement: 450mm

• C-arm depth: 780mm

• C-arm opening: 820mm

• SID:1050mm

X Ray Generator

• High-frequency inverter frequency: 40kHz
• Output power: 5KW
• Rotating anode, dual focus, small 0.3mm, large 0.6mm

The FPD

• Type: Amorphous silicon CSI
• Normal area: 20*20cm
• Maximum acquisition rate: 30FPS

Monitor of C-arm gantry

• Monitor resolution of C-arm gantry: 1920*1080

• Monitor interface of C-arm gantry: VGA

Imaging post-processing

• Horizontal image
• Vertical image
• Annotation, including polygon, circle, rectangle, line, arrow and text
• Line segment and angle measurement function

Image data management

• New cases, worklist search, add new examination to exist patients

• Deleting cases, delete one or more examinations of patient

• Support DICOM 3.0 standard worklist inquiry service, download cases information from HIS/PACS

Mobile C arm X ray Machine

Clinical Image
