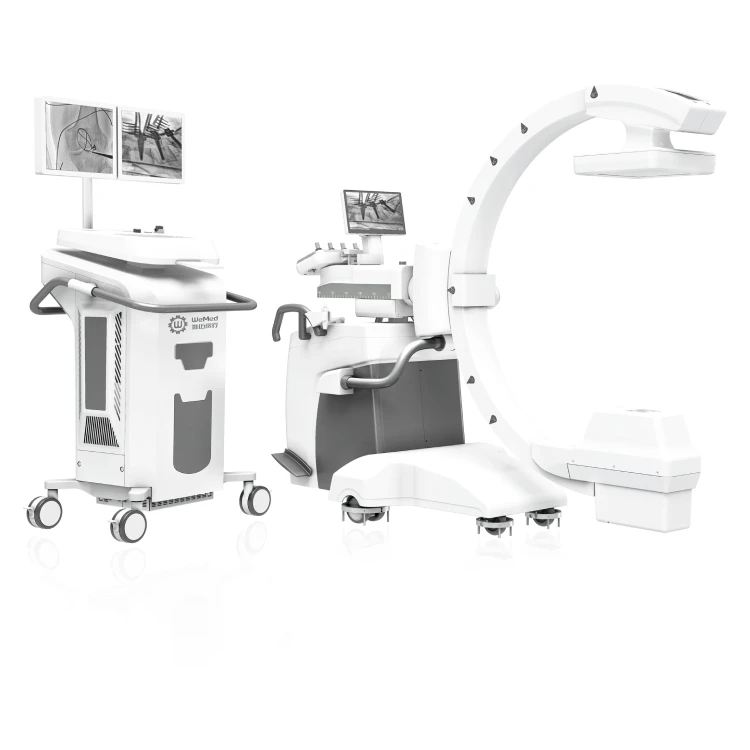

Motorized Orthopedic Surgical C-arm

Video Of Motorized Orthopedic Surgical C arm X ray:

Index:

X-ray Generator

• Tube current: 0.2-100mA

• Output power:5kW

• Rotating anode, dual focus, small 0.3mm, large 0.6mm

Grid

• Ratio: 10:1

• Focal length: 110cm

Dynamic FPD

• Type: Amorphous silicon CSI

• Nominal area:210mm*210mm

• Pixel pitch: 205μm

• Matrix: 1024×1024

• Maximum acquisition rate: 30FPS

C-arm Gantry

• Lateral movement:25cm

• Vertical lifting movement:45cm

• Swing left & right: 25°(±12°, error ±1°)

• C arm orbital range: 135°(-45°-90°)

Image Acquisition & Processing

• 2*19' touch-screen medical monitors on trolley


• 1* 13.3' touch-screen monitor on C-arm gantry

• Monitor interface: D-sub or DVI

• Monitor resolution of C-arm gantry: 1920*1080

• Monitor interface of C-arm gantry: VGA

Fluoroscopy

• 3 FLU modes:normal FLU, low-dose FLU, high-dose FLU.

• Supporting continuous fluoroscopy and pulse fluoroscopy

Radiography

• CINE mode supports 6 different frame: 1,2, 4, 8, 16, 30fps.

Print & Storage

• DICOM film printing is supported the processed DICOM images can be transferred to a DICOM printer for printing into film.

• Print device management: Multiple printers can be supported at the same time and are compatible with a variety of DICOM format printers.

• Print format: Supports a variety of film sizes, with a variety of vertical and horizontal layout functions.

• Support the images export of selected cases to USB flash drives and CD/DVD discs.

• Support the images export of selected cases to USB flash drives and CD/DVD discs.

• Output comes with DICOM image browser.
