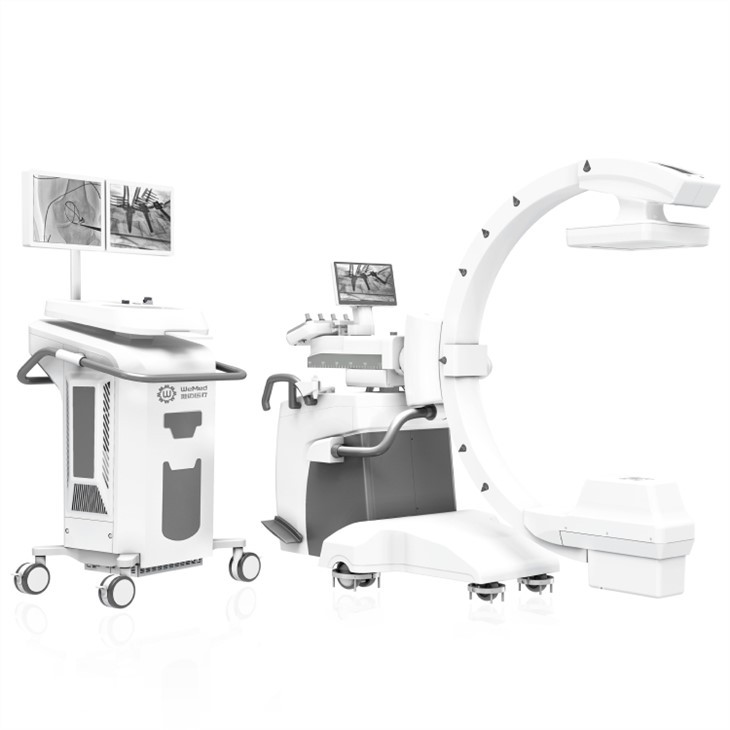

Mobile C Arm X-ray Machine For Multi-disciplinary Application

C Arm X Ray Machine Description:

• Original from Bionics "Compound eye" technology

• Mobile c arm X ray machine for multi-disciplinary application


• Unique 5A multi-image processing technology

• Longer service life


• display micron-level high-definition images


Video:

C Arm X Ray Machine Product specifications:

Dynamic flat panel detector

• Type: Amorphous silicon CSI

• Nominal area:210mm*210mm

• Pixel greyscale: 65536 gradations

• Maximum acquisition rate: 30FPS

• Matrix: 1024×1024

C-arm Gantry

• Lateral movement:250mm

• Vertical lifting movement:450mm

• C-arm depth:780mm

• C-arm opening: 820mm

• SID:1050mm

Control Device

• Hand switch & Footswitch

• Console box: 4 joysticks and 5 buttons

Collimator

• X-ray filed size: 0～35cm×35cm@100cm SID continuous adjustable.

• Electric lung field iris copper sheet, iris collimator can rotate counterclockwise/clockwise, can be opened and closed.

• Advanced technology: Liquid metal bearing technology

• Additional filters: Air; 1mmAl+0.1mmCu; 1mmAl+0.2mmCu; 2mmAl

X-ray Generator

• Output power: 5KW

• Tube current: 0.2-100mA

• Anode heat dissipation: 423HU/s

Fluoroscopy

• 3 FLU modes: normal FLU, low-dose FLU, high-dose FLU.

• Supporting continuous fluoroscopy and pulse fluoroscopy

• Last image hold function after fluoroscopy

• Pulse fluoroscopy supports 1、2、4、8、16、30pps

• Pulse fluoroscopy support pulse width: 8、16、40、80ms

Radiography

• Spot film & CINE


• CINE mode supports 6 different frame: 1,2, 4, 8, 16, 30fps.

• Loading time in CINE mode: 8, 16, 40, 80ms

Image post-processing

• Window width/level adjustment

• Recursive noise reduction

• Imaging zoom

• Magnifier

• Image rotation

• Horizontal image

• Vertical image

• Annotation, including polygon, circle, rectangle, line, arrow, and test.
