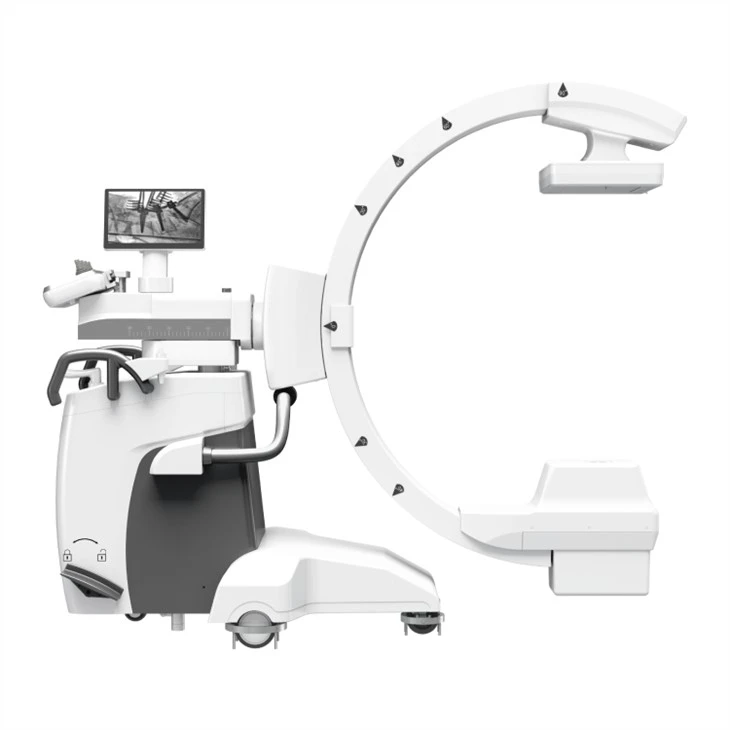

Fluoroscopic C Arm Machine

C arm machine application:

The 3d c arm has a wilder clinical applications: orthopedic surgery, spinal surgery, gastroenterology surgery, obstetric & gynecology surgery.

C arm machine parameters:

Environmental conditions

Ambient temperature: 10℃～40℃

Relative humidity: 30%～75%

Atmospheric pressure: 700hPa～1060hPa

Power condition

Voltage : 220VAC±10%

Power frequency : 50Hz±1Hz

High-voltage generator

Output power : 5KW

Tube voltage range：40-120KV

Maximum tube current：100mA

Rotational anode, dual focus

Collimator

Continuously adjustable field

Motorized

Dynamic flat panel detector

Type：A-si CsI

Nominal area：210mm×210mm

AD digital converter：16 bit

C-arm gantry

Control method : All-electric

C-arm orbital ≥130°

Rotation around horizontal axis ≥±180°

C-arm opening : 820mm

SID≥1000mm

Depth ≥780mm

Imaging system

Imaging display system: 2*19-inchdisplay on workstation trolley, 1*12-inch display on C-arm trolley.

Fluoroscopy: Continuous and pulsed fluoroscopy

Radiography: Fluoroscopic spot film & cine function

Image post-processing: Window width/level adjustment, recursive noise reduction, zoom, etc.

Image data management

DICOM3.0

Print & Storage

Advanced option:

3D acquisition function

FAQ:

1. Who we are?

WeMed Medical is the one who focus on providing interventional products & surgical treatment solutions in China, which has many years' experiences in R&D of digital angiography products and industrialization.

2. How we can guarantee quality?

Our products not only meet the IEC60601 series standard, but also pass the ROHS 2.0 test, and we carried out usability test and validity period verification. Each of our products is 100% strictly inspected before delivery.

3. What you can buy from us?

DSA system, angiography machine, surgical C-arm, mobile c arm x ray machine, interventional robots and other medical equipment cutomer needs.

4. What services can we provide?

Accepted Delivery Terms: EXW, FOB, CIF, CFR, FCA；

Accepted Payment Currency: USD, EUR, CNY;

Accepted Payment Type: T/T, L/C;

Language Spoken:English, Spanish, German, French, Italian, Portuguese, Chinese.

5. Where is your factory?

Beijing, China.

Milan, Italy.
