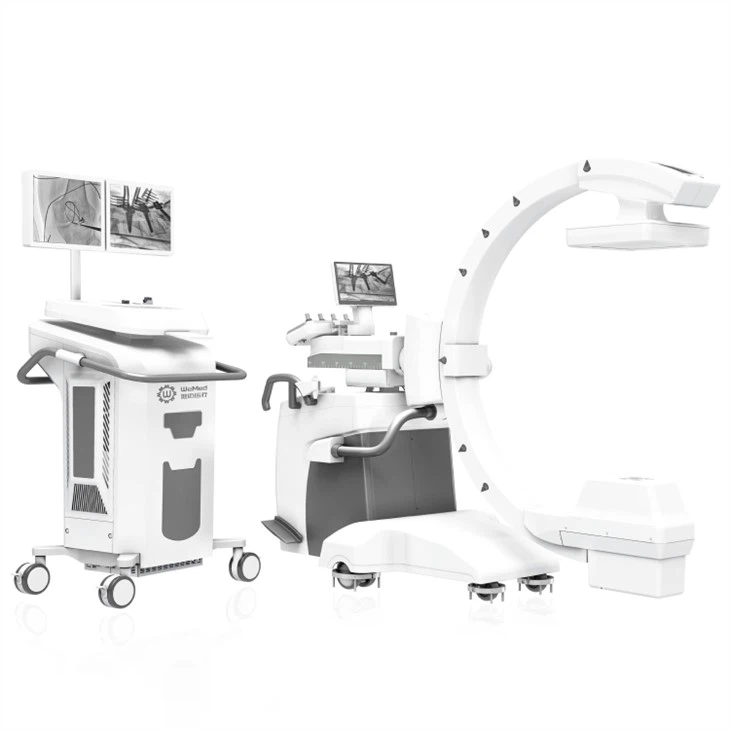

Elfinbot 100--C Arm X Ray System Made In China

About WeMed:

WeMed Medical, established in 2014, is a professional medical equipment enterprise in China that focus on Digital Subtraction Angiography System, Mobile angiography x ray System, Mobile C-arm System, and Endovascular Robotic system with many years of experience in R&D and industrialization. Elfinbot 100-- c arm x ray system is made by us in China

Product Video:

C Arm X Ray System Details:

High-frequency X Ray Generator

• Inverter frequency:40kHz

• Output power:5kW

• Input power frequency: 50Hz

• Input power voltage: 220VAC

Collimator

• X-ray filed size: 0～35cm×35cm@100cm SID continuous adjustable.

• Additional filters: Air; 1mmAl+0.1mmCu; 1mmAl+0.2mmCu; 2mmAl

Dynamic FPD

• Type: Amorphous silicon CsI

• Nominal area:21cm*21cm

• Matrix: 1024×1024

• Spatial frequency: 2.5lp/mm

• AD range: 16bits

• Maximum acquisition rate: 30FPS

Gantry System

• Lateral movement:250mm

• Vertical lifting movement:450mm

• CRA/CAU: 90°/45°

• LAO/RAO: ±225°

Control Device

• Foot and hand switch

Fluoroscopy

• 3 FLU modes: normal FLU, low-dose FLU, high-dose FLU.

• Pulse fluoroscopy supports 1、2、4、8、16、30pps

• Pulse fluoroscopy support pulse width: 8、16、40、80ms

Radiography

• Spot film & CINE

• CINE mode supports 6 different frame: 1,2, 4, 8, 16, 30fps

• Loading time in spot film mode: 40-4000ms, R' 10

Image Post-processing

• Window width/level adjustment

• Recursive noise reduction

• Imaging zoom

• Magnifier

• Image rotation

Image browsing

• Real-time image browsing supports frame rate adjustment of playback.

• Real-time image browsing supports current sequence loop play.


• Real-time browsing supports thumbnails to browse all sequences of current cases.

Elfinbot 100--C Arm X Ray System Made In China

Clinical Image
