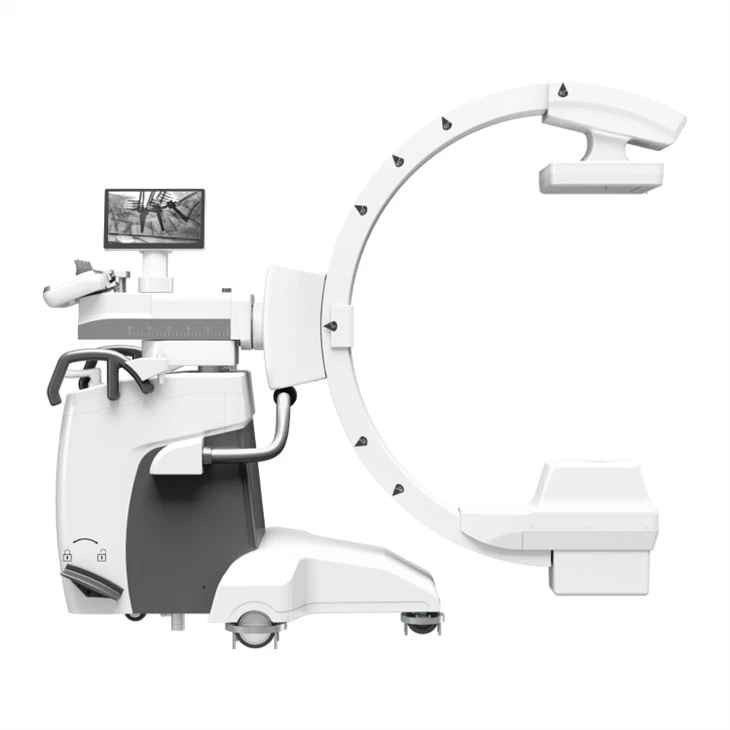

C Arm X-ray Machine With Open Surgery Space

The Advantages of C Arm X Ray Machine:

• Lower radiation dose and excellent image quality

• C arm x ray machine with open surgery space


• Motorized control

• Dynamic flat panel detector

• Large heat capacity rotating anode tube

Product Video:

C Arm X Ray Machine Details:

X-ray Generator

• 40kHz high-frequency

• 5kW output power

• X-ray tube unit heat capacity: 1000kJ

• X-ray tube unit continuous heat dissipation: 75W

Collimator

• X-ray filed size: 0～35cm×35cm@100cm SID continuous adjustable

• Electric lung field iris copper sheet, iris collimator can rotate counterclockwise/clockwise, can be opened and closed

• Advanced technology: Liquid metal bearing technology

• Additional filters: Air; 1mmAl+0.1mmCu; 1mmAl+0.2mmCu; 2mmAl

Dynamic FPD

• Type: Amorphous silicon CSI

• 210mm*210mm nominal area

• 205μm pixel pitch

• 1024×1024 matrix

• Spatial frequency: 2.5lp/mm

• Size: 270×275×54mm

The Gantry

• Swing left & right: 25°(±12°, error ±1°)

• C-arm orbital range: 135°(-45°～90°)

• CRA/CAU: 90°/45°

• Rotate around the horizontal axis: ±225°


• LAO/RAO: -225°/225°, error ±1°

Control Device

• Hand switch and foot switch

• Console box: 4 joysticks and 5 buttons

Image Acquisition & Processing System

• 1*PC, CPU2.8GHz, 8GB memory, 1T hard disk，120GSSD, 2 *USB2.0 interface

• 2*19' touch-screen medical monitors on trolley

• 1* 13.3' touch-screen monitor on C-arm gantry

• Monitor: DICOM calibration function, meets DICOM standard

Image Post-processing

• Window width/level adjustment

• Recursive noise reduction

• Imaging zoom

• Magnifier

• Image rotation
