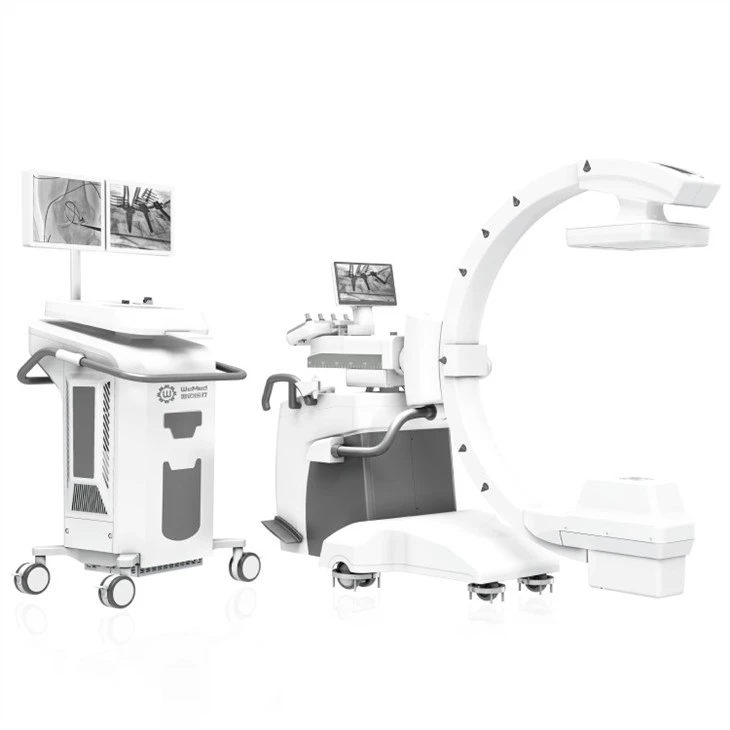

All-electric C Arm X Ray System

All-electric c arm x ray system description:

Elfinbot 100 adopts 5D motion all-electric control system, which makes positioning more precise and convenient to operate.

Remote control system can control C-arm movement and exposure in the control room, which reduces doctor's repeated round trip. Meanwhile it ensures longer protection of doctors' health, radiation safety and stay away from radiation hazards.

Large C-arm opening design meets diagnosis & treatment needs of patients with different postures and provide better operation space for doctor.

The flat panel detector laser positioning system can accurately locate the position that needs projection, replacing the traditional X-ray positioning and reducing the radiation dose.

3D image rotating acquisition restores the real anatomical, let the doctors learn more about tissues and makes implant more accurate.

All-electric c arm x ray system product parameters:

X-ray generator

• High frequency inverter frequency:40kHz

• Output power:5kW

• Fluoroscopy tube voltage: 40-120KV

• Radiography tube voltage: 40-120KV

• Rotating anode, dual focus, small 0.3mm, large 0.6mm

Dynamic flat panel detector

• Type: Amorphous silicon CSI

• Nominal area:210mm*210mm

• Pixel pitch: 205μm

• Matrix: 1024×1024


C-arm gantry

• Lateral movement:250mm

• Vertical lifting movement:450mm

• Swing left & right: 25°(±12°,error ±1°)

• C-arm orbital range: 135°(-45°～90°)

Image acquisition & processing system

• 1*PC, CPU2.8GHz, 8GB memory, 1T hard disk，120GSSD, 2 *USB2.0 interface

• 2*19' touch-screen medical monitors on trolley

• 1* 13.3' touch-screen monitor on C-arm gantry

• Monitor: DICOM calibration function, meets DICOM standard

Fluoroscopy

• 3 FLU modes:normal FLU, low-dose FLU, high-dose FLU.

• Supporting continuous fluoroscopy and pulse fluoroscopy

• Last image hold function after fluoroscopy

Radiology

• CINE mode supports 6 different frame: 1,2, 4, 8, 16, 30fps.

• Spot film supports 0.4-320mAs，R' 10

• Loading time in spot film mode: 40-4000ms, R' 10

Image post-processing

• Window width/level adjustment

• Recursive noise reduction

• Imaging zoom

• Magnifier

• Image rotation

• Horizontal image

• Vertical image

• Annotation, including polygon, circle, rectangle, line, arrow and test.

• Line segment and angle measurement function.

All-electric c arm x ray system

medical image
